$\begingroup$

I have a question about a system of ODE. If we have:

$\frac{dx}{dt}=x+2y$

$\frac{dy}{dt}=3x+2y$

with $x(0)=6$ and $y(0)=4$,

how come the solution to the IVP is:

$x(t)=4e^{4t}+2e^{-t}$

$y(t)=6e^{4t}-2e^{-t}$

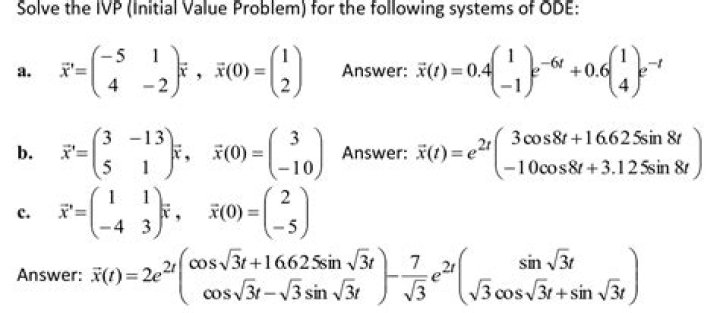

I tried doing integral by separating the variable but I didn't get that solution. That example & solution are from my numerical method book, please see the attached image

example & solution

$\endgroup$ 6

5 Answers

$\begingroup$

take laplace transform on both sides of both differential equations to get

$(s-1)X(s)=2Y(s)+6 \ \ $ ;

$(s-2)Y(s)=3X(s)+4\\$ respectively

solve for $X(s)$ and $Y(s)$ like algebric equations to give ;

$Y(s)=\dfrac{4s+14}{(s+1)(s-4)}\implies y(t)=-2e^{-t}+6e^{4t}$

$X(s)=\dfrac{6s-4}{(s+1)(s-4)}\implies x(t)=2e^{-t}+4e^{4t}$

$\endgroup$ 1 $\begingroup$

Hint: With $$y=\frac{x'-x}{2}$$ we get$$y'=3x+\frac{3}{2}(x'-x)$$ and we get $$y'=\frac{x''-x'}{2}$$ so we obtain$$\frac{x''-x'}{2}=3x+\frac{3}{2}(x'-x)$$Can you finish? From here you will get$$x''-4x'-3x=0$$ make the ansatz $$x=e^{\lambda t}$$

$\endgroup$ 2 $\begingroup$

Hint:

One possibility is to eliminate one of the unknowns.

$$x'=x+2y\implies x''=x'+2y'$$ and $$y'=3x+2y=3x+(x'-x),$$

hence

$$x''-3x'-4x=0.$$

$\endgroup$ 2 $\begingroup$

Let us consider your system of ODE:$$\frac{dx}{dt}=x+2y\\\frac{dy}{dt}=3x+2y$$It follows that$$\frac{dx}{dt}+\frac{dy}{dt}=4x+4y\rightarrow \frac{d(x+y)}{dt}=4(x+y)\rightarrow \frac{d(x+y)}{x+y}=4dt$$Integration on both sides yields$$\ln(x+y)=4t+C\rightarrow x+y=Ce^{4t}\rightarrow y=Ce^{4t}-x$$Substitution into $\frac{dx}{dt}$ gives$$\frac{dx}{dt}=x+2(Ce^{4t}-x)\rightarrow \frac{dx}{dt}+x=2Ce^{4t}$$Multiply by $e^t$ on both sides:$$\frac{dx}{dt}e^{t}+xe^{t}=2Ce^{5t}\rightarrow\frac{d(xe^{t})}{dt}=2Ce^{5t}$$Integration on both sides yields$$xe^{t}=\frac{2C}{5}e^{5t}+K\rightarrow x=\frac{2C}{5}e^{4t}+Ke^{-t}$$Substitution into $y$ gives$$y=\frac{3C}{5}e^{4t}-Ke^{-t}$$Apply conditions:$$x(0)+y(0)=6+4=10\rightarrow Ce^{4(0)}=10\rightarrow C=10\\x(0)=6\rightarrow \frac{2(10)}{5}e^{4(0)}+Ke^{-(0)}=6\rightarrow K=2$$Thus,$$x(t)=4e^{4t}+2e^{-t}\\y(t)=6e^{4t}-2e^{-t}$$

$\endgroup$ $\begingroup$

Observe that you have $$ \begin{pmatrix} \dot{x} \\ \dot{y} \end{pmatrix} = \begin{pmatrix} 1 & 2 \\ 3 & 2 \end{pmatrix} \cdot \begin{pmatrix}x \\ y \end{pmatrix} \text{.} $$The eigenvalues of this matrix are $4, -1$, so both solutions are of the form $a \mathrm{e}^{4x} + b \mathrm{e}^{-1x}$. As others have shown, you then match the coefficients to the initial value data.

$\endgroup$
