I bought a GigaByte B360M Gaming HD motherboard. (link)

It has a weird looking M.2 connector instead of the usual screw type.

I need help in figuring out how to install the drive; Hopefully, a link to a video showing the process.

See attached images.

See the corresponding section from the manual (link here)

YouTube video showing the image (7:22 mark)

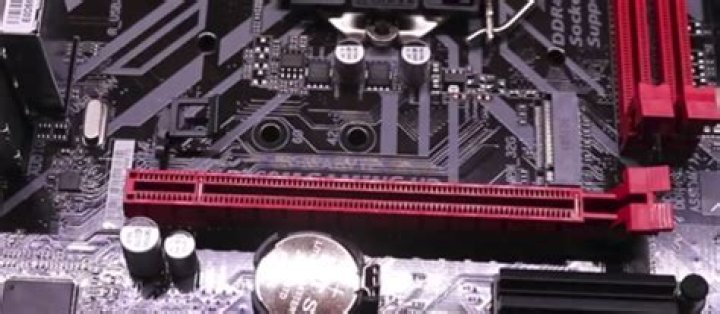

A few pictures of the connector is shown below:

This is all the manual says:

• Step 1: Locate the proper mounting hole for the M.2 SSD to be installed and then install the mounting clip first.
• Step 2: Slide the M.2 SSD into the connector at an angle.
• Step 3: Press the M.2 SSD down and then secure it by pressing the clip pin into the mounting hole.

Screenshot of manual

Manual was downloaded from the official GigaByte site (link). The box came with just one page booklet without any info about M.2.

1

2 Answers

Looks like a tool-less way to install the drive -

The numbers next to the holes refer to common M.2 sizes, just fit the clip to the appropriate hole, insert the M.2 cart to the socket at an angle, and lower it till it clips into place.

Its unclear if the clip screws or latches on - but the idea is you fit that in, then just pop in your drive... its a curious design

Although i’m not familiar with this method of mounting M.2 cards, it looks like you (1) remove the clip from the motherboard, (2) slide the M.2 card into its socket, (4) secure the clip around the other (non-connector) side of the M.2 card and (5) press the clip (and the card) into the appropriate hole in your motherboard.

It looks like there’s not much more to it than that.
