I am using visio 2013 right now. And I have some troubles with snapping on the grids. Is it possible to force snapping on grids? So it'll never go outline?

Thanks in advance!

2

1 Answer

This can be done by amending the Snap strength.

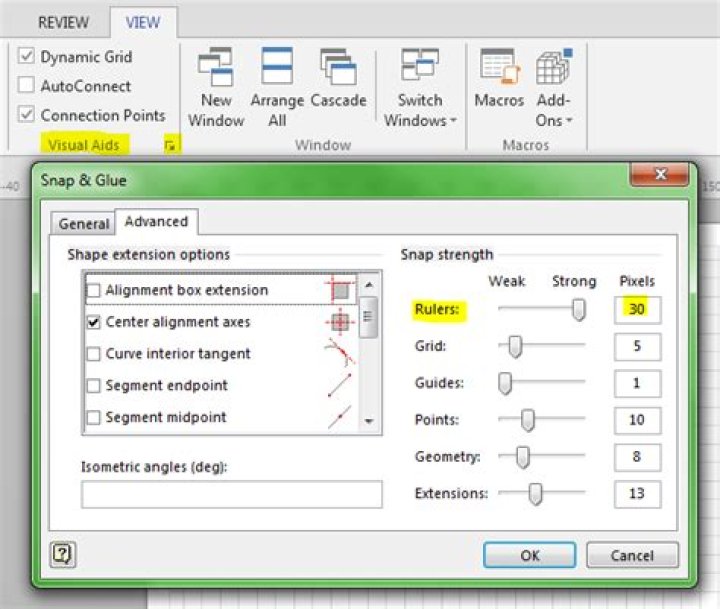

Go to the View tab and click the little arrow at the bottom of Visual Aids, then go to the advanced tab. From here you can change what snaps, and by how much.

By changing the snap to rulers strength to full I was able for enforce snapping to ruler gridlines so that objects cannot sit between gridlines.

4
