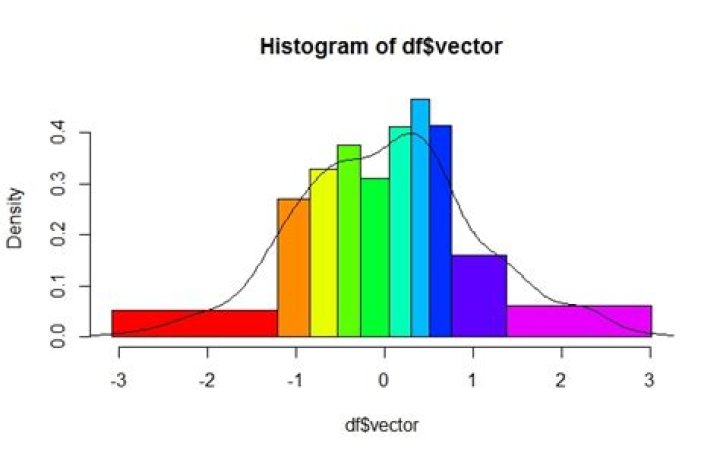

I want to create the next histogram density plot with ggplot2. In the "normal" way (base packages) is really easy:

set.seed(46)
vector <- rnorm(500)
breaks <- quantile(vector,seq(0,1,by=0.1))
labels = 1:(length(breaks)-1)
den = density(vector)
hist(df$vector, breaks=breaks, col=rainbow(length(breaks)), probability=TRUE)
lines(den)

With ggplot I have reached this so far:

seg <- cut(vector,breaks, labels=labels, include.lowest = TRUE, right = TRUE)
df = data.frame(vector=vector,seg=seg)
ggplot(df) + geom_histogram(breaks=breaks, aes(x=vector, y=..density.., fill=seg)) + geom_density(aes(x=vector, y=..density..))

But the "y" scale has the wrong dimension. I have noted that the next run gets the "y" scale right.

 ggplot(df) + geom_histogram(breaks=breaks, aes(x=vector, y=..density.., fill=seg)) + geom_density(aes(x=vector, y=..density..))

I just do not understand it. y=..density.. is there, that should be the height. So why on earth my scale gets modified when I try to fill it?

I do need the colours. I just want a histogram where the breaks and the colours of each block are directionally set according to the default ggplot fill colours.

1

4 Answers

Manually, I added colors to your percentile bars. See if this works for you.

library(ggplot2)
ggplot(df, aes(x=vector)) + geom_histogram(breaks=breaks,aes(y=..density..),colour="black",fill=c("red","orange","yellow","lightgreen","green","darkgreen","blue","darkblue","purple","pink")) + geom_density(aes(y=..density..)) + scale_x_continuous(breaks=c(-3,-2,-1,0,1,2,3)) + ylab("Density") + xlab("df$vector") + ggtitle("Histogram of df$vector") + theme_bw() + theme(plot.title=element_text(size=20), axis.title.y=element_text(size = 16, vjust=+0.2), axis.title.x=element_text(size = 16, vjust=-0.2), axis.text.y=element_text(size = 14), axis.text.x=element_text(size = 14), panel.grid.major = element_blank(), panel.grid.minor = element_blank())

1

fill=seg results in grouping. You are actually getting a different histogram for each value of seg. If you don't need the colours, you could use this:

ggplot(df) + geom_histogram(breaks=breaks,aes(x=vector,y=..density..), position="identity") + geom_density(aes(x=vector,y=..density..))

If you need the colours, it might be easiest to calculate the density values outside of ggplot2.

1

Or an option with ggpubr

library(ggpubr)
gghistogram(df, x = "vector", add = "mean", rug = TRUE, fill = "seg", palette = c("#00AFBB", "#E7B800", "#E5A800", "#00BFAB", "#01ADFA", "#00FABA", "#00BEAF", "#01AEBF", "#00EABA", "#00EABB"), add_density = TRUE)

The confusion regarding interpreting the y-axis might be due to density is plotted rather than count. So, the values on the y-axis are proportions of the total sample, where the sum of the bars is equal to 1.
